DC BI-POLAR ELECTROMAGNETS

bi-polar electromagnetBipolarField reaches out further.

Works on uneven surfaces.

75% duty cycle.

Max. Ambient temp 40°C (100°F)





24 Volts DC Bi-Polar Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth (NOT BEYOND)

Lead Length

Watts

Amps

Net Weight

List Price

24 V. DC
at 75% Duty Cycle

0" gap

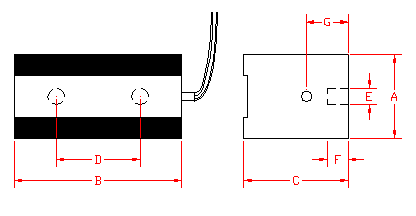

A

B

C

D

E

F



PL-103013-24

170 lbs.

1”

3”

1-3/8”

2”

1/4-20

1/4"

48” leads

9

0.39

1 lb.

$128



PL-104013-24

210 lbs.

1”

4"

1-3/8”

3”

1/4-20

1/4"

48” leads

12

0.52

1.5 lbs.

$141



PL-106013-24

260 lbs.

1”

6”

1-3/8”

4-1/2”

1/4-20

1/4"

48” leads

18

0.76

2 lbs.

$164





110 Volts DC Bi-Polar Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth (NOT BEYOND)

Lead Length

Watts

Amps

Net Weight

List Price



110 V. DC
at 100% Duty Cycle

0" gap

A

B

C

D

E

F



PL-234138-110

460 lbs.

2-3/8”

4-1/8”

3-7/8”

2-1/2”

3/8-16

1/2"

36”Cable

15

0.14

7.2 lb.

$198



Safety Caution:

The holding values as listed are actual readings of breaking away a 1/2" steel plate with no air-gaps between them. They have not been de-rated. For safety in holding applications, do not use electromagnets at more than 1/2 of rated value. In lifting applications, do not use at more than 1/4 of rated value. Do not use electromagnets over people.
