MAGNETIC FLUX GENERATORS

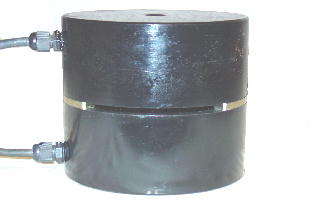

flux generator electromagnetflux generator electromagnet

Features:
Lower operation temperature rise
Continuous operation rating
Inter-changeable field gaps
Low cost user composed unit

Test Area Selection: Test area diameter and desired Gap distance

Part Number

DC Volts

DC Amps

Test Area Diameter

Gausses @ 1/8” Gap

Gausses @ 1/4” Gap

Gausses @ 1/2” Gap

Overall Size

Net Weight

Price

MFG-3-12

12

4.2

1½” Dia.

8,000

4,000

3”Dia. x 6¼”Ht.

11 lb.

$565


MFG-3-24

24

2.1

1½” Dia.

8,000

4,000

3”Dia. x 6¼”Ht.

11 lb.

$565

MFG-6-12

12

7.6

3” Dia.

12,000

7,000

3,500

6”Dia. x 6½”Ht.

42 lb.

$1,105

MFG-6-24

24

3.8

3” Dia.

12,000

7,000

3,500

6”Dia. x 6½”Ht.

42 lb.

$1,105


User composition:

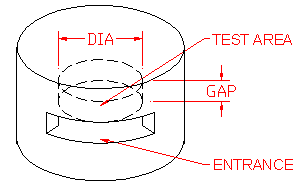

Each magnetic flux generator comes with 2 electromagnets, 2 spacers for MFG-3-xx or 3 spacers for MFG-6-xx. Stack up two electromagnets facing each other with a gap spacer. Connect two electrical cables from the electromagnets in parallel. Insert test object in the test area. Magnetic flux lines are within and perpendicular to the diameter test area. Maximum height of the test area is the gap distance set by gap spacer. Caution, they just stack up together not assembled. User can weld them together with a spacer for permanent use.

Print Assembly Instruction for 12 Volt unit.

Print Assembly Instruction for 24 Volt unit.

Spacers Phote of Spacers

Get more flux strength:
50% more voltage input at 50% duty cycle will increase about 40% more Gauss or 100% more voltage input at 25% duty cycle will increase about 80% more Gauss.
