DC HIGH-TEMP PARALLEL POLE ELECTROMAGNET

electromagnetelectromagnet

Works on uneven surface.

Adapts custom shoes.

Continuous duty cycle.

Max. Ambient temp 115°C (239°F)

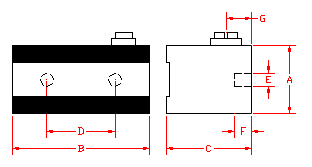

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth

Terminal Position

Watts

Amps

Net Weight

List Price

24 V. DC

0" gap

A

B

C

D

E

F

G



PH-208027-24

740 lbs.

2”

8"

2-3/4”

6-1/2”

5/16-18

1/2" max.

1"

24

1

10 lbs.

$384



DC HIGH-TEMP RECTANGULAR ELECTROMAGNET

quick connect electromagnetFeatures: Quick connecter, 6 ft cable,

           Nickel-plated for corrosion resistance

                 Continuous Duty operation

                  High Ambient Temperature up to 115° (239°F)

Applications: Abort gate releasing



Part Number

Voltage

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth

Lead Length

Watts

Amps

Net Weight

List Price

DC

0" gap

A

B

C

D

E

F

SH-804025C-110

110 V

1700 lbs.

4”

8”

2-1/2”

4"

3/8-16

1"

72” cable

37

0.34

18 lbs.

 $419



Custom High-Temp Electromagnets:

Custom products were those we had designed and manufactured in the past. We can make similar products per custom specs, however cannot provide specs on displayed units. Those are not in stock.

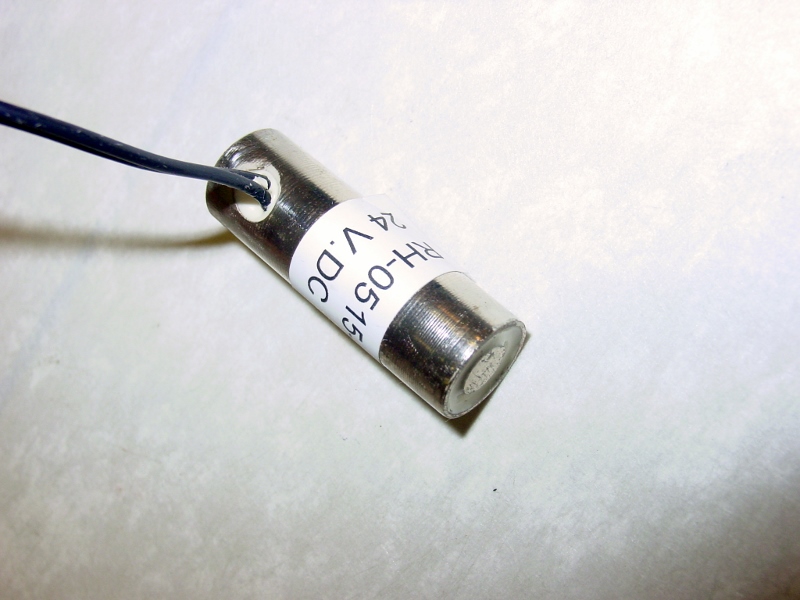

0.5" dia high temp electromagnet
0.5" Dia. x 1.5" Ht.

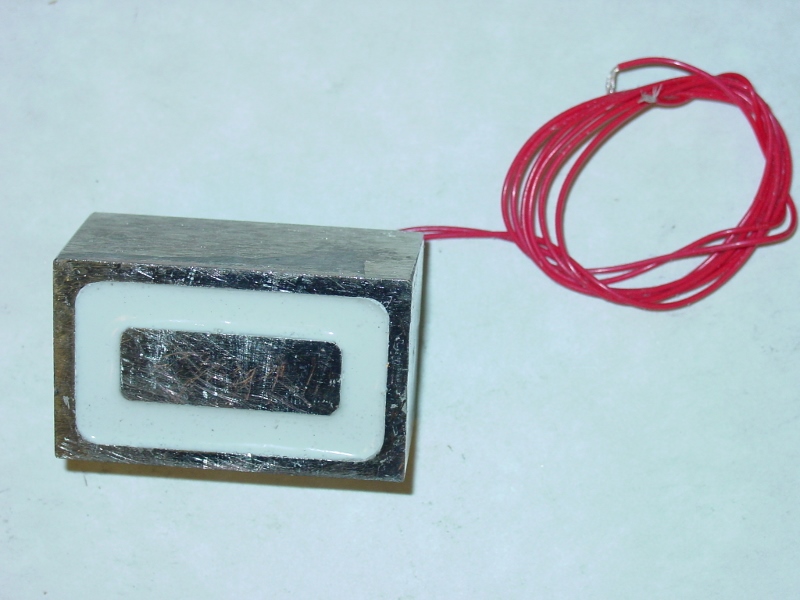

High-temp electromagnet200 °C. 2000 PSI Ambient

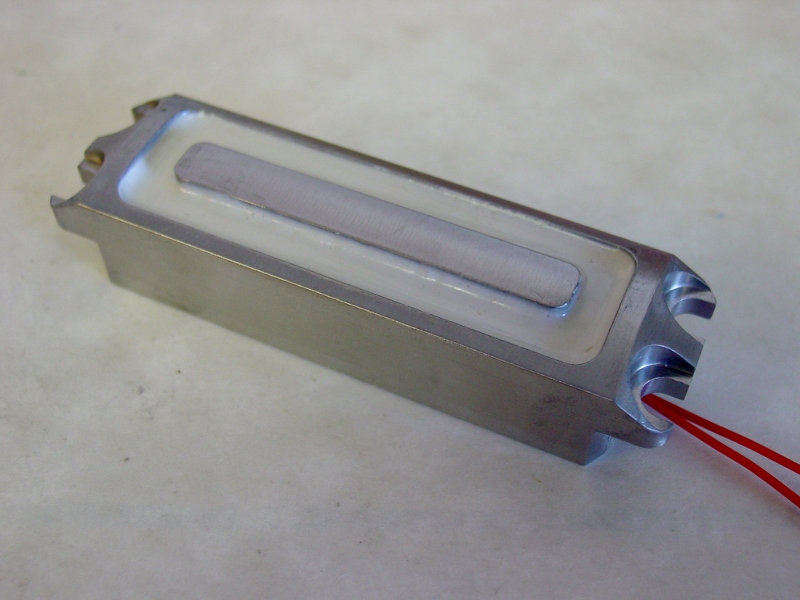

High-temp electromagnet
200 °C  (394 °F) Ambient

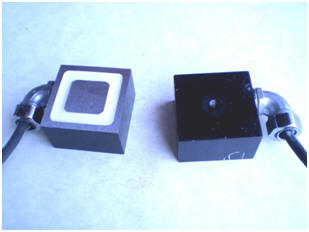

High-temp electro-magnet
115 °C (239 °F) Ambient






Safety Caution:

The holding values as listed are actual readings of breaking away a 1/2" steel plate with no air-gaps between them. They have not been de-rated. For safety in holding applications, do not use electromagnets at more than 1/2 of rated value. In lifting applications, do not use at more than 1/4 of rated value. Do not use electromagnets over people.
