DC POWER SUPPLIES – Off-release Power Supply

power supply

Proprietary Design for simple control

Releasing part(s) when power is off

On-off cycle up to 10 times per minute

Controllable by customer SPST switch or PLC

Steel NEMA-12 industrial enclosure with optional attachments

Lower operation temperature rise

Complete isolation between AC input and DC output




Functions:

All DC electromagnets have some residual magnetism after turning off power. Usually the residual magnetism won't let go relatively light weight part. Off-release Power Supply releases part(s) automatically when power source is off. Turning on or off power source can be controlled by a simple SPST switch, a relay N.O. contact, or a PLC analog voltage.




NEMA-12 enclosureOff-release Power Supplies - Plant Version:

NEMA-12 steel enclosure has no any attachments or cutouts.

It is designed for factory plant or shop environment which requires NEMA-12 integrity.

User will punch holes and add conduits or other components to interface with plant settings.

Part Number

Input AC Volts

Output DC Volts

Output Watts

Control Methods

Enclosure Size HxWxD

Net Weight

List Price

PSOR100-12

120/240

12

100

SPST switch, N.O. Contact, 12 V.DC PLC Output

12" x 10" x 5"

18

$735

Call or email us

PSOR100-24

120/240

24

100

SPST switch, N.O. Contact, 24 V.DC PLC Output

12" x 10" x 5"

18

$735

Call or email us

PSOR100-110

120/240

110

100

SPST switch, N.O. Contact, 110 V.DC PLC Output

12" x 10" x 5"

18

$840

Call or email us




CSP enclosureOff-release Power Supplies - Lab Version:

NEMA-12 steel enclosure has built-in input cable with plug, main rotary switch, pilot light and output fitting.

It is ready to use. There is no need to drill any holes on the enclosure.

User to connect electromagnet(s) to it and select control method per operation manual.

Part Number

Input AC Volts

Output DC Volts

Output Watts

Control Methods

Enclosure Size HxWxD

Net Weight

List Price

PSOR100-12CSP

120

12

100

SPST switch, N.O. Contact, 12 V.DC PLC Output

12" x 10" x 5"

20

$905

Call or email us

PSOR100-24CSP

120

24

100

SPST switch, N.O. Contact, 24 V.DC PLC Output

12" x 10" x 5"

20

$905

Call or email us

PSOR100-110CSP

120

110

100

SPST switch, N.O. Contact, 110 V.DC PLC Output

12" x 10" x 5"

20

$1,010

Call or email us

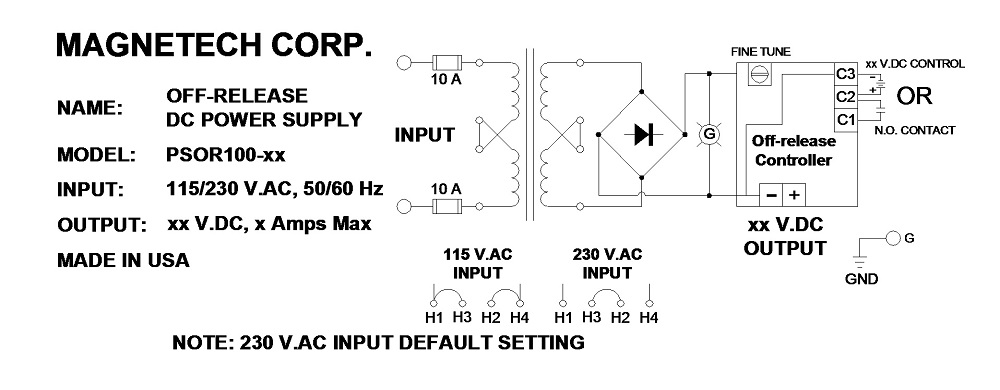

Plant Version Schematic Diagram:

PSOF100-xx Schematic


Operation Manual
