DC PARALLEL POLE ELECTROMAGNETS

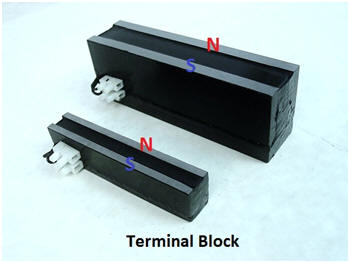

parallel pole electromagnet terminal blockField reaches out further.

Works on uneven surfaces.

Adapts custom pole shoes.

Continuous duty cycle.

Max. ambient temp of 40°C (100°F).

Terminal block connection.



12 Volts DC Parallel Pole Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth (NOT BEYOND)

Watts

Amps

Net Weight

List Price

12 V. DC

0" gap

A

B

C

D

E

F

Bulk Orders?

International Shipping?

P-101013-12

20 lbs.

1”

1”

1-3/8”

1/2”

10-32

1/4”

3

0.25

6 oz.

$117

P-102013-12

110 lbs.

1”

2”

1-3/8”

1"

1/4-20

1/4"

6

0.5

12 oz

$123

P-103013-12

160 lbs.

1”

3”

1-3/8”

2”

1/4-20

1/4"

9

0.75

1 lb.

$132

P-104013-12

200 lbs.

1"

4”

1-3/8”

3"

1/4-20

1/4"

11

0.92

1.5 lbs.

$141

P-106013-12

250 lbs.

1”

6”

1-3/8”

4-1/2”

1/4-20

1/4"

18

1.5

2 lbs.

$164

P-204027-12

460 lbs.

2”

4”

2-3/4”

3”

5/16-18

1/2"

21

1.8

5 lbs.

$169

P-206027-12

640 lbs.

2”

6”

2-3/4”

4-1/2”

5/16-18

1/2"

30

2.5

8 lbs.

$195

P-208027-12

860 lbs.

2”

8"

2-3/4”

6-1/2”

5/16-18

1/2"

36

3.0

10 lbs.

$226



24 Volts DC Parallel Pole Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth (NOT BEYOND)

Watts

Amps

Net Weight

List Price

24 V. DC

0" gap

A

B

C

D

E

F

Bulk Orders?

International Shipping?

P-101013-24

20 lbs.

1”

1”

1-3/8”

1/2”

10-32

1/4”

3

0.12

6 oz.

$117

P-102013-24

110 lbs.

1”

2”

1-3/8”

1"

1/4-20

1/4"

6

0.25

12 oz

$123

P-103013-24

160 lbs.

1”

3”

1-3/8”

2”

1/4-20

1/4"

9

0.38

1 lb.

$132

P-104013-24

200 lbs.

1"

4”

1-3/8”

3"

1/4-20

1/4"

11

0.46

1.5 lbs.

$141

P-106013-24

250 lbs.

1”

6”

1-3/8”

4-1/2”

1/4-20

1/4"

18

0.75

2 lbs.

$164

P-204027-24

460 lbs.

2”

4”

2-3/4”

3”

5/16-18

1/2"

21

0.88

5 lbs.

$169

P-206027-24

640 lbs.

2”

6”

2-3/4”

4-1/2”

5/16-18

1/2"

30

1.3

8 lbs.

$195

P-208027-24

860 lbs.

2”

8"

2-3/4”

6-1/2”

5/16-18

1/2"

36

1.5

10 lbs.

$226

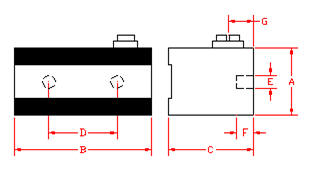

 Dimensional Drawing:

parallel_pole_dimensions


Custom Parallel Pole Electromagnets:

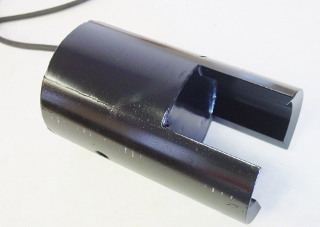

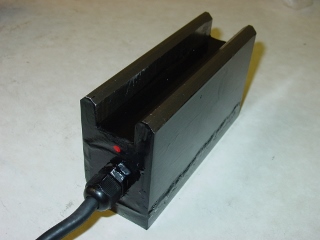

Custom products were those we had designed and manufactured in the past. We can make similar products per custom specs, however cannot provide specs on displayed units. Those are not in stock.



Safety Caution:

The holding values as listed are actual readings of breaking away a 1/2" steel plate with no air-gaps between them. They have not been de-rated. For safety in holding applications, do not use electromagnets at more than 1/2 of rated value. In lifting applications, do not use at more than 1/4 of rated value. Do not use electromagnets over people.
