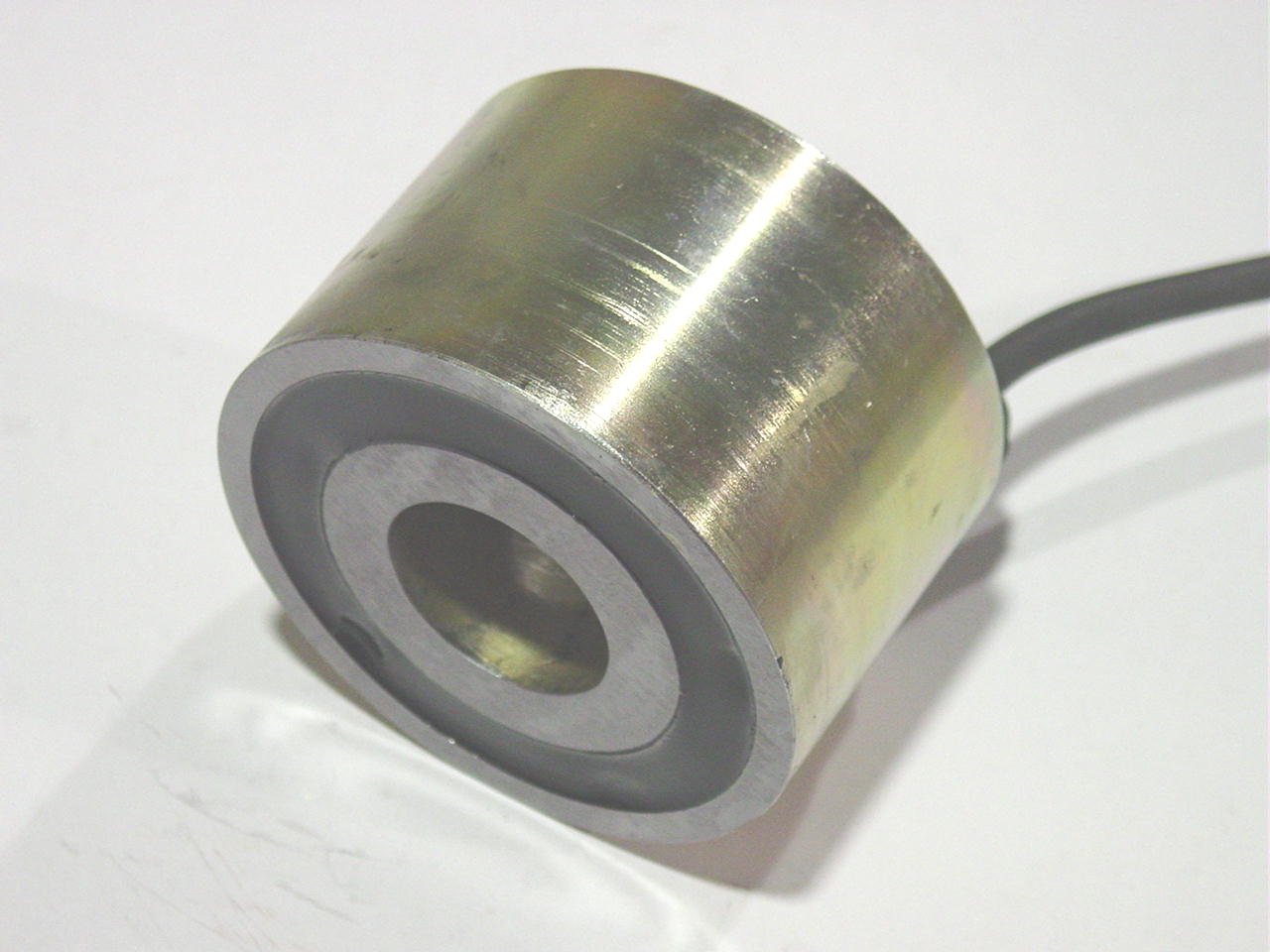

DC RING (Doughnut) ELECTROMAGNETS

  Holding force on flat surface with center clearance.

 Best in holding applications.

 Maximum holding at no gap.

 Continuous duty cycle.

 Max. Ambient temp 40°C (100°F)



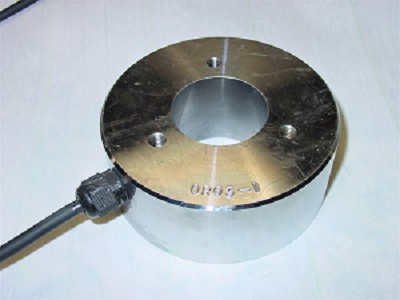

24 Volts DC Ring (Doughnut) Electromagnets:

Part Number

Holding Value

Overall Diameter

Height

Inside Diameter

Mounting Thread

Thread Depth

Lead Length

Watts

Amps

Net Weight

List Price

24 V. DC

0" gap

A

B

C

D

E









Bulk Orders?

International Shipping?

D-201510-24

120 lbs.

2”

1-1/2”

1”

(3) 10-32

3/8”

24” leads

10

0.42

12 oz.

$150



D-302015-24

300 lbs.

3”

2”

1-1/2”

(3) 1/4-20

3/8”

36” Cable

20

0.82

2.5 lb.

$240



D-402520-24

540 lbs.

4”

2-1/2”

2”

(3) 5/16-18

1/2”

36” Cable

31

1.3

6 lb.

$310



D-503025-24

940 lbs.

5”

3”

2-1/2”

(3) 3/8-16

1/2”

36” Cable

50

2.1

10 lb.

$360














Custom Ring Electromagnets:

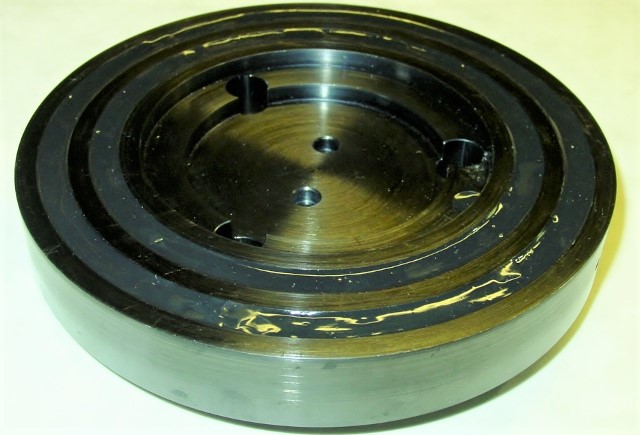

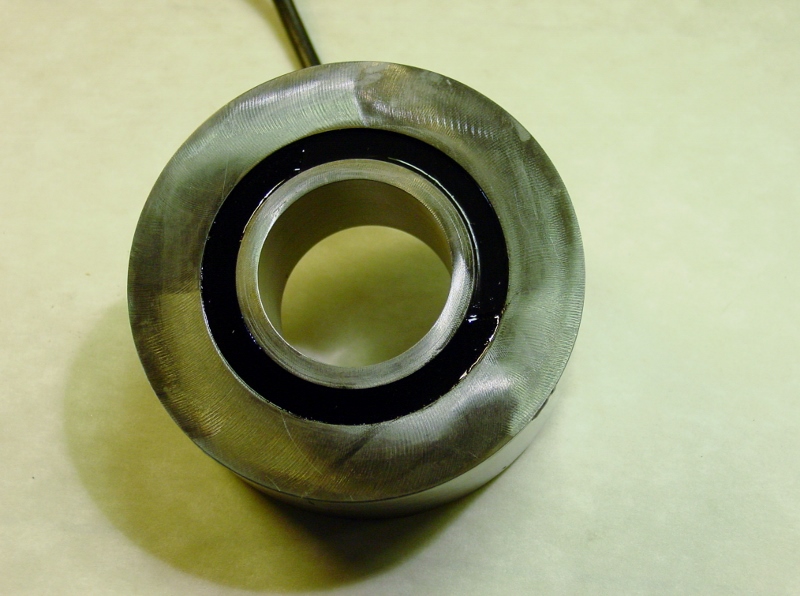

Custom products were those we had designed and manufactured in the past. We can make similar products per custom specs, however cannot provide specs on displayed units. Those are not in stock.

Ring electromagnet  ring electromagnet Ring electromagnet ring electromagnet





Safety Caution:

The holding values as listed are actual readings of breaking away a 1/2" steel plate with no air-gaps between them. They have not been de-rated. For safety in holding applications, do not use electromagnets at more than 1/2 of rated value. In lifting applications, do not use at more than 1/4 of rated value. Do not use electromagnets over people.
