DC SPECIAL APPLICATION ELECTROMAGNETS



S-030107C-24 Electromagnet

Low profile electromagnet

Features: Low Profile

Applications: Sheet metal holding



Part Number

Voltage

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Lead Length

Watts

Amps

Net Weight

List Price

DC

0" gap

A

B

C

D

E



S-331107C-24

24 V

160 lbs.

1.10”

3.35”

0.79”

0.79"

M4 x 0.7

24” leads

5.8

0.25

14 oz.

$68




Side Mount Electromagnet

Side Mount Electromagnets

 Features: Side or wall mount, Slotted mounting holes
                   (For 110 V.AC version, contact us.)

Applications: Gate, door holding


Part Number

Voltage

Holding Value

Width

Length

Height

Hole Spacing

Mounting Hole Clearance

Lead Length

Watts

Amps

Net Weight

List Price

DC

0" gap

A

B

C

D

E

S-402030C-48

48 V

300 lbs.

2"

4"

3"

2"

1/4"

36" cable

19

0.4

5 lbs.

$180

S-402030C-110

110 V

300 lbs.

2”

4”

3”

2"

1/4"

36” cable

22

0.2

5 lbs.

$180




wall mount electromagnet

Wall Mount Electromagnet

Features: Wall Mount, Nickel-plated all surfaces

Applications: Rust resistant holding




Part Number

Voltage

Holding Value

Width

Length

Height

Hole Spacing

Mounting Hole Clearance

Lead Length

Watts

Amps

Net Weight

List Price

DC

0" gap

A

B

C

D

E

S-251512C-12

12 V

160 lbs.

1-1/2”

2-1/2”

1-1/4”

3"

#10-32

24” leads

10

0.4

1.1 lbs.

$90




quick connect electromagnetQuick Connecting Electromagnet

Features: Mini quick connecter, 6 ft cable,

           All Nickel-plated surfaces,

                   High Ambient Temperature up to 115° (239°F)

Applications: Abort gate releasing

               Rust resistant holding


Part Number

Voltage

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth

Lead Length

Watts

Amps

Net Weight

List Price

DC

0" gap

A

B

C

D

E

F

SH-804025C-110

110 V

1700 lbs.

4”

8”

2-1/2”

4"

3/8-16

1"

72” cable

37

0.34

18 lbs.

 $419




flexible conduit electromagnet

Flexible Conduit Electromagnet

Features: 3/8” Flexible Conduit Fitting,

Applications: Liquid-tight environments







Part Number

Voltage

Holding Value

Width

Length

Height

Mounting Thread

Thread Depth

Lead Length

Watts

Amps

Net Weight

List Price

DC

0" gap

A

B

C

D

E



S-252515C-110

110 V

300 lbs.

2-1/2”

2-1/2”

1-1/2”

1/4-20

1/2"

36” cable

14

0.13

2 lbs.

$105

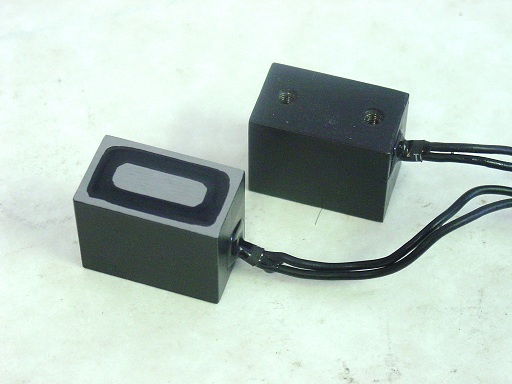

electromagnetNarrow Width Electromagnet

Features: Width less then 1"
                  Flexible leads come out of side

Applications: Automotive purposes



Part Number

Voltage

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth

Lead Length

Watts

Amps

Net Weight

List Price

DC

0" gap

A

B

C

D

E

F

S-160912C-24

24 V

80 lbs.

15/16”

1-5/8”

1-1/4”

1"

10-32

1/2"

24” leads

5.8

0.24

10 oz.

$108

S-350812C-24

24 V

120 lbs.

7/8”

3-1/2”

1-1/4”

2"

1/4-20

1/2"

24” leads

8.2

0.34

1.1 lb.

$168


  Electro-permanent

Permanent Electromagnet (Electro-permenent)

Features:    Holding without electricity.
                     Monentary DC power on for releasing.

Applications: Doors, draws.







Holding Value at zero gap

Retaining Value at zero gap

Diameter
Ø

Height

Mounting Clearance

Flexible Lead Length

Watts on release

Amps

Net Weight

List Price

PEM-35

33 lb.
(150 N)

3 lb.
(13 N)

1.38” (35mm)

0.87”
(22mm)

#8-32
(M5)

12”
(Red for Positive)

20

0.82

4.5 oz.

$147



electromagnetElectromagnetic Lock

Features: Lock with contact switch for feedback control,
                  Complete nickel-plated against corrosion,
                  Complete set of electromagnet, striking plate, rubber cushion,
                  M12, 5-pin quick connector (Cable not included).

Applications: Safety gates, draws, doors.

Part Number

Voltage

Holding Value

Width

Length

Height

Hole Spacing

Mounting Clerance

Connect Switch

Quick Connector

Watts

Amps

Net Weight

List Price

DC

0" gap

A

B

C

D

E



set

EML-801308C-24

24 V

100 lbs.

1.35”

8.07”

.83”

6.22"

1/4-20

SPDT

M12, 5-pin male

7

0.29

2 lb.

$225




Safety Caution:

The holding values as listed are actual readings of breaking away a 1/2" steel plate with no air-gaps between them. They have not been de-rated. For safety in holding applications, do not use electromagnets at more than 1/2 of rated value. In lifting applications, do not use at more than 1/4 of rated value. Do not use electromagnets over people.
