DC V-BLOCK ELECTROMAGNETS

electromagnetHolds cylindrical parts.

Continuous duty cycle.

Terminal block connection.

Max. Ambient temp 40°C (100°F).



24 Volts DC V-Block Electromagnets:

Part Number

V Angle

Holding Value

Holding Diameter

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth

Watts

Amps

Net Weight

List Price

24 V. DC



0" gap

A

B

C

D

E

F

PV-206032-24

90°

Up to 250 lbs.

1-3/4" to 3"

2”

6"

3-1/4”

4-1/2”

5/16-18

1/2"

30

1.3

10 lbs.

$200

PV-208030-24

150°

Up to 350 lbs.

3" to 7"

2”

8"

3”

6-1/2”

5/16-18

1/2"

36

1.5

12 lbs.

$231

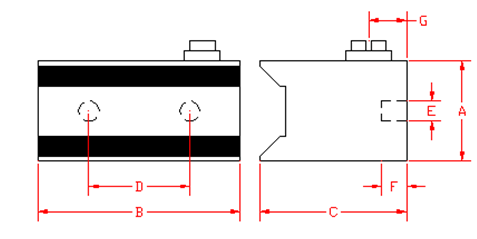

Dimensional Drawing:

electromagnet dimensions


Custom V-Block Electromagnets:

 Custom products were those we had designed and manufactured in the past. We can make similar products per custom specs, however cannot provide specs on displayed units. Those are not in stock.

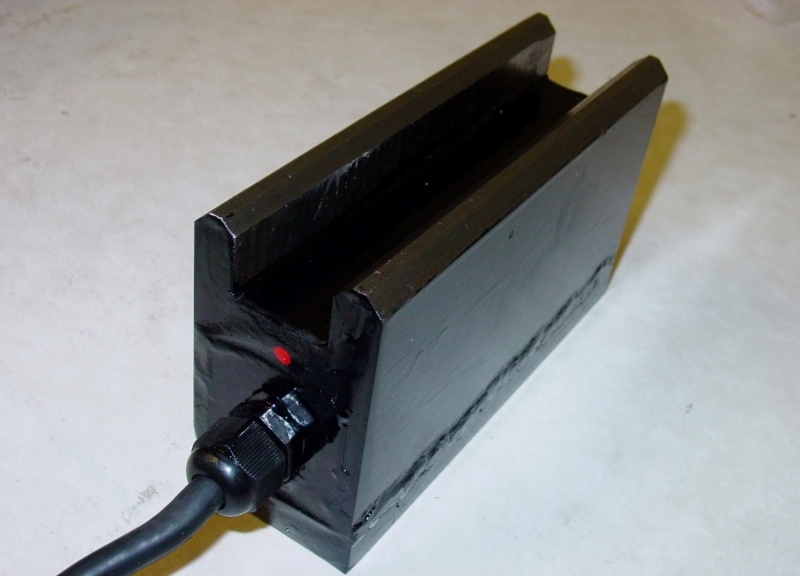

Angle block electromagnet




Safety Caution:

The holding values as listed are actual readings of breaking away a 1/2" steel plate with no air-gaps between them. They have not been de-rated. For safety in holding applications, do not use electromagnets at more than 1/2 of rated value. In lifting applications, do not use at more than 1/4 of rated value. Do not use electromagnets over people.
