DC POWER SUPPLIES - VARIABLE OUTPUT

power supplySpecific for electromagnets

Lower operation temperature rise

Continuous operation rating

Steel NEMA-12 industrial enclosure

Touch-proof protection on transformer terminal blocks

Complete isolation between AC input and DC output

Customer accessible terminal blocks

Manual-setting Variable DC output with options




Functions:

The variable output power supplies provide 0 to rated DC output by manually adjusting variable transformer. It is used to control the magnetic field strength of an electromagnet.




Variable Output DC Power Supplies - Plant Version:

NEMA-12 steel enclosure has no any attachments or cutouts.

It is designed for factory plant or shop environment which requires NEMA-12 integrity.

User will punch holes and add conduits or other components to interface with plant settings.

Part Number

Input AC Volts

Output DC Volts

Max. Output Watts

Enclosure Size HxWxD

Net Weight

List Price

PSV200-121

120

0-12

200

12" x 10" x 5"

19

$724

Call or email us

PSV200-122

120

0-24

200

12" x 10" x 5"

19

$724

Call or email us

PSV200-1211

120

0-110

200

12" x 10" x 5"

19

$750

Call or email us




Variable Output DC Power Supplies - Lab Version:

NEMA-12 steel enclosure has built-in input cable with plug, main rotary switch, pilot light and output fitting.

It is ready to use. There is no need to drill any holes on the enclosure.

User will connect electromagnet(s) to the output terminals of the power supply.

Part Number

Input AC Volts

Output DC Volts

Max. Output Watts

Enclosure Size HxWxD

Net Weight

List Price

PSV200-121CSP

120

0-12

200

12" x 10" x 5"

21

$894

Call or email us

PSV200-122CSP

120

0-24

200

12" x 10" x 5"

21

$894

Call or email us

PSV200-1211CSP

120

0-110

200

12" x 10" x 5"

21

$920

Call or email us

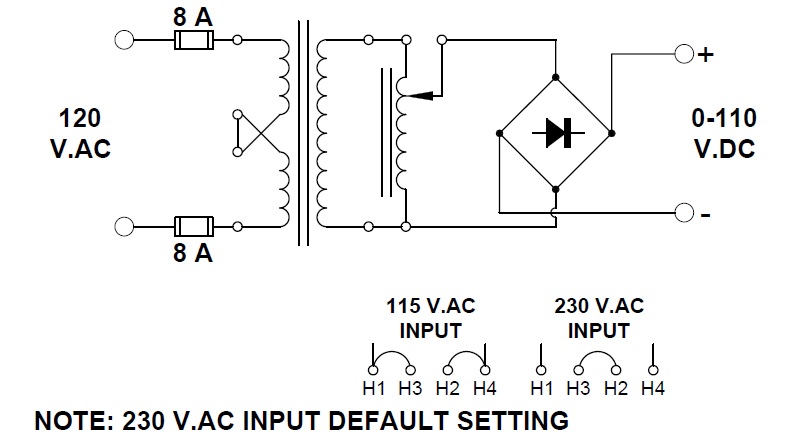

Plant Version Schematic Diagram:

power supply
