Magnetech Corp offers optimized DC low profile electromagnets. They are in stock at negotiable price.



DC LOW PROFILE ELECTROMAGNETS

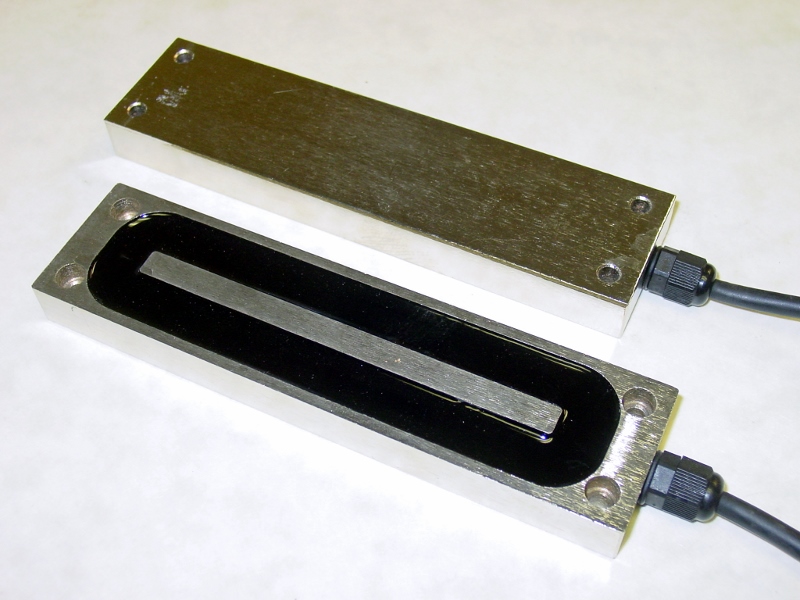

low profile electromagnetOnly 3/4" High, flat surface.

Best in sheet metal holding.

Nickel-plated for corrosion prevention.

Continuous duty cycle.

Max. ambient temp 40°C (100°F)

Print specification

12 Volts DC Low Profile Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Clearance

Lead Length

Watts

Amps

Net Weight

List Price

12 V. DC

0" gap

A

B

C

D1 x D2

E









Bulk Orders?

International Shipping?

L-402007-12

100 lbs.

2

4

3/4

3-1/2'' x 1-1/4''

1/4 - 20 SHCS

36” cable

5.79

0.48

2 lbs.

$123



L-802007-12

270 lbs.

2

8

3/4

7-1/4'' x 1-1/4''

1/4 - 20 SHCS

36” cable

14.3

1.29

4 lbs.

$153

L-12X2007-12

360 lbs.

2

12

3/4

11-1/4'' x 1-1/4''

1/4 - 20 SHCS

36” cable

23.8

1.94

6 lbs.

$197


24 Volts DC Low Profile Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Clearance

Lead Length

Watts

Amps

Net Weight

List Price

24 V. DC

0" gap

A

B

C

D1 x D2

E









Bulk Orders?

International Shipping?

L-402007-24

100 lbs.

2

4

3/4

3-1/2'' x 1-1/4''

1/4 - 20 SHCS

36” cable

5.79

0.25

2 lbs.

$123

L-802007-24

270 lbs.

2

8

3/4

7-1/4'' x 1-1/4''

1/4 - 20 SHCS

36” cable

14.3

0.65

4 lbs.

$153

L-12X2007-24

360 lbs.

2

12

3/4

11-1/4'' x 1-1/4''

1/4 - 20 SHCS

36” cable

23.8

0.99

6 lbs.

$197


110 Volts DC Low Profile Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Clearance

Lead Length

Watts

Amps

Net Weight

List Price

110 V. DC

0" gap

A

B

C

D1 x D2

E









Bulk Orders?

International Shipping?

L-402007-110

100 lbs.

2

4

3/4

3-1/2'' x 1-1/4''

1/4 - 20 SHCS

36” cable

5.79

0.059

2 lbs.

$139

L-802007-110

270 lbs.

2

8

3/4

7-1/4'' x 1-1/4''

1/4 - 20 SHCS

36” cable

14.3

0.13

4 lbs.

$167

L-12X2007-110

360 lbs.

2

12

3/4

11-1/4'' x 1-1/4''

1/4 - 20 SHCS

36” cable

23.8

0.22

6 lbs.

$211



Holding force decreasing over thickness of sheet metal:

Part Number

0.25" Steel

7 ga. (0.179")

11 ga. (0.120")

15 ga. (0.067")

21 ga. (0.033")

27 ga. (0.016")

31 ga. (0.010")

L-402007-XX

120 lbs.

120 lbs.

100 lbs.

30 lbs.

8  lbs.

2.5 lbs.

0.8 lbs.

L-802007-XX

350 lbs.

350 lbs.

270 lbs.

95 lbs.

25 lbs.

7 lbs.

2.5 lbs.

L-12X2007-XX

450 lbs.

450 lbs.

360 lbs.

140 lbs.

 35 lbs.

10 lbs.

4 lbs.

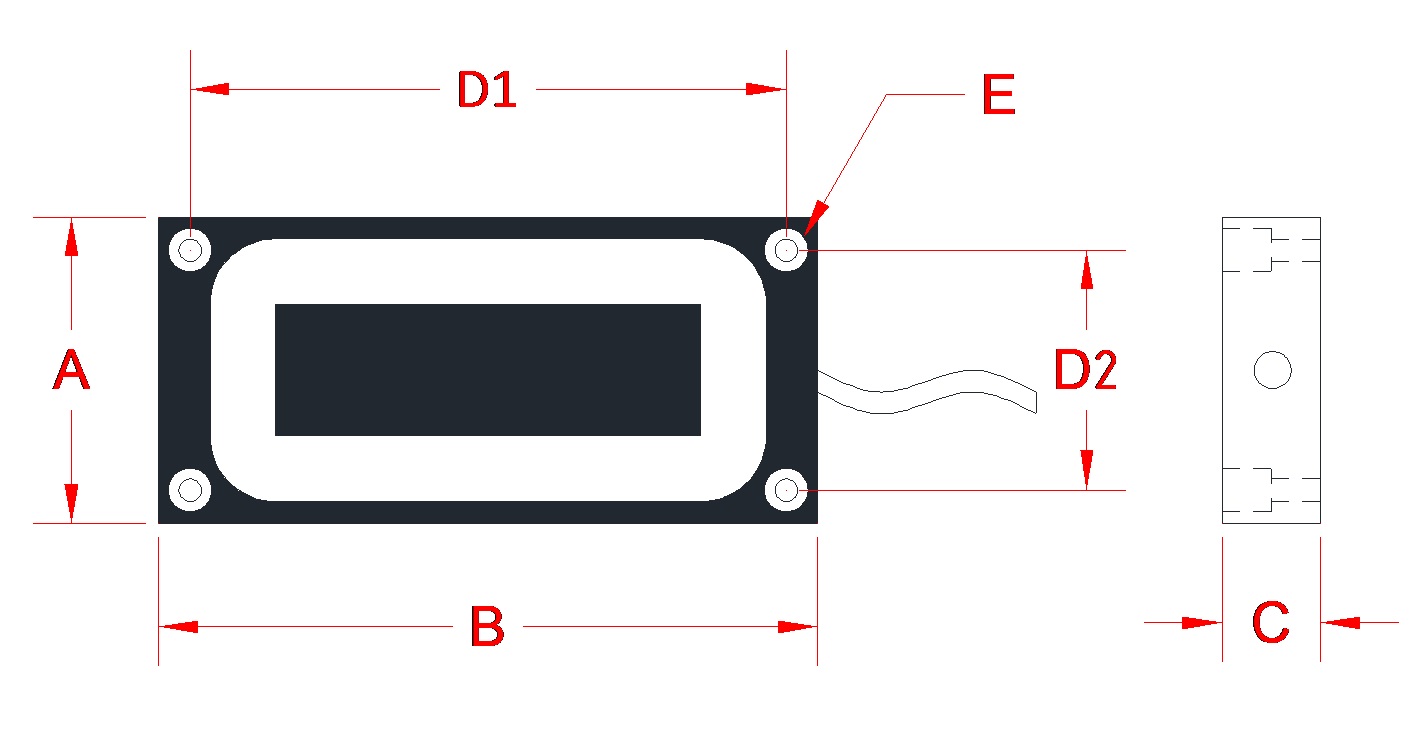

Dimensional Drawing:

Low profile dimensions


Custom Low Profile Electromagnets:

Low profile electromagnets are also known as flat, pancake, planar, bar, straight bar electromagnets.

Custom products were those we had designed and manufactured in the past. We can make similar products per custom specs, however cannot provide specs on displayed units. Those are not in stock.

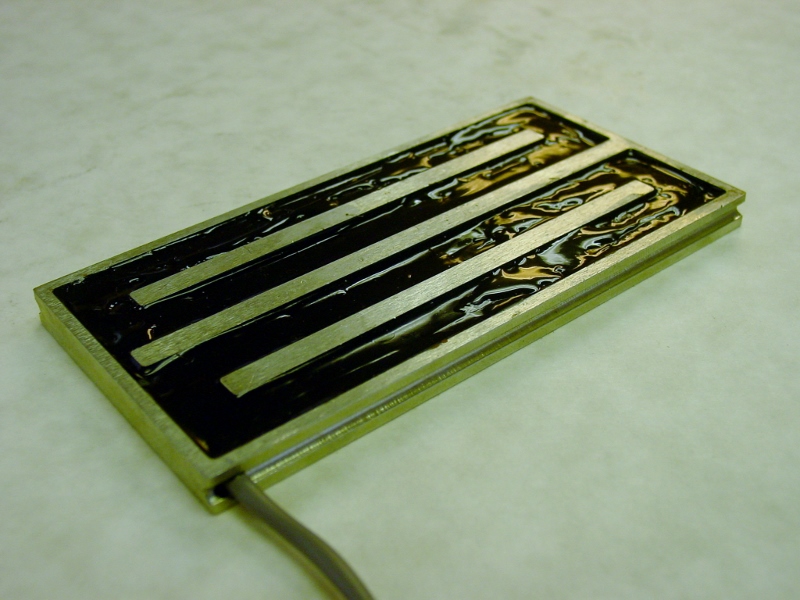

0.375" low profile electromagnet
3/8" Height, Double E-magnet
metric low profile electromagnet
Metric Size
low profile electromagnet
1/2" Height



Safety Caution:

The holding values as listed are actual readings of breaking away a 1/2" steel plate with no air-gaps between them. They have not been de-rated. For safety in holding applications, do not use electromagnets at more than 1/2 of rated value. In lifting applications, do not use at more than 1/4 of rated value. Do not use electromagnets over people.
