Magnetech Corp offers Large Tri-Pole electromagnets. They are made-to-order at negotiable price.
DC TRI-POLE ELECTROMAGNETS

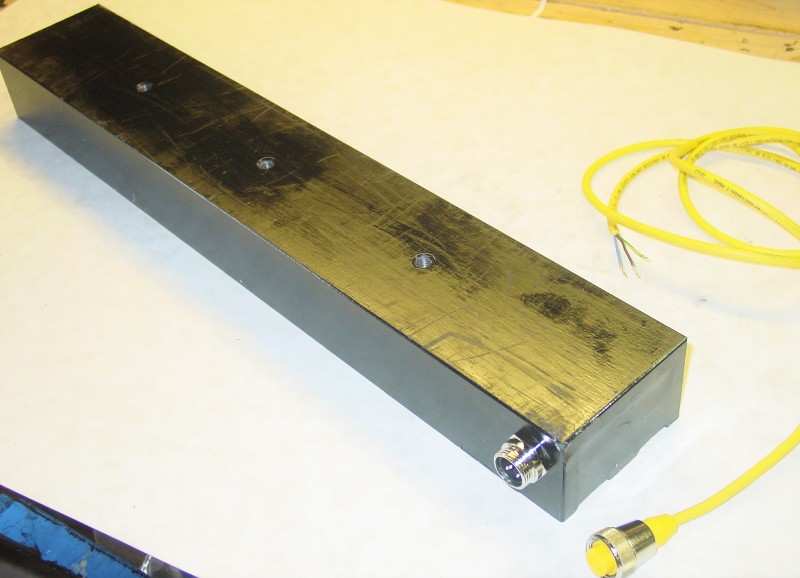

Triple poles with quick connector & 6 ft cable.
Center Pole extends up to very ends for butt joints.
Best in holding and conveying applications.
Combining units for custom length
Continuous duty cycle.
Max. Ambient temp 40°C (100°F)
24
Volts DC Tri-Pole Electromagnets:
|
Part Number |
Holding Value |
Length |
Width |
Height |
Hole Spacing |
Mounting Thread |
Thread Depth |
Quick Connector |
Watts |
Amps |
Net Weight |
Reference Price |
|
|
24
V. DC |
0" gap |
A |
B |
C |
D |
E |
F |
|
|
|
|
||
|
T-12X4025-24 |
2100 lbs | 12" | 4" | 2-1/2" | 6" | (2) 3/8-16 | 1" | 7/8-16UN | 77 | 3.2 | 28 lbs | $1,811 | Made to order |
|
T-18X4025-24 |
3300 lbs | 18" | 4" | 2-1/2" | 6" | (3) 3/8-16 | 1" | 7/8-16UN | 111 | 4.6 | 41 lbs | $2,137 | Made to order |
|
T-24X4025-24 |
4200 lbs | 24" | 4" | 2-1/2" | 6" | (3) 3/8-16 | 1" | 7/8-16UN | 133 | 5.5 | 55 lbs | $2,504 | Made to order |
110
Volts DC Tri-Pole Electromagnets:
|
Part Number |
Holding Value |
Length |
Width |
Height |
Hole Spacing |
Mounting Thread |
Thread Depth |
Quick Connector |
Watts |
Amps |
Net Weight |
Reference Price |
|
|
110
V. DC |
0" gap |
A |
B |
C |
D |
E |
F |
|
|
|
|
||
|
T-12X4025-110 |
2100 lbs | 12" | 4" | 2-1/2" | 6" | (2) 3/8-16 | 1" | 7/8-16UN | 77 | 0.7 | 28 lbs | $2,111 | Made to order |
|
T-18X4025-110 |
3300 lbs | 18" | 4" | 2-1/2" | 6" | (3) 3/8-16 | 1" | 7/8-16UN | 111 | 1.0 | 41 lbs | $2,468 | Made to order |
|
T-24X4025-110 |
4200 lbs | 24" | 4" | 2-1/2" | 6" | (3) 3/8-16 | 1" | 7/8-16UN | 133 | 1.2 | 55 lbs | $2,846 | Made to order |
Custom Electromagnets:
Custom products were hose we had designed and manufactured in the past. We can make similar products per custom specs, however cannot provide specs on displayed units. Those are not in stock.

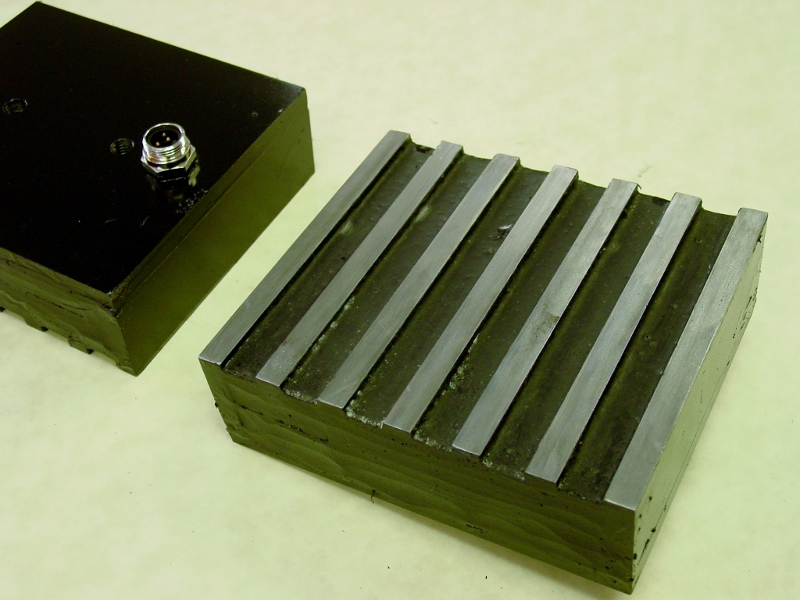

 Mutiple Poles |
 Tri-pole |

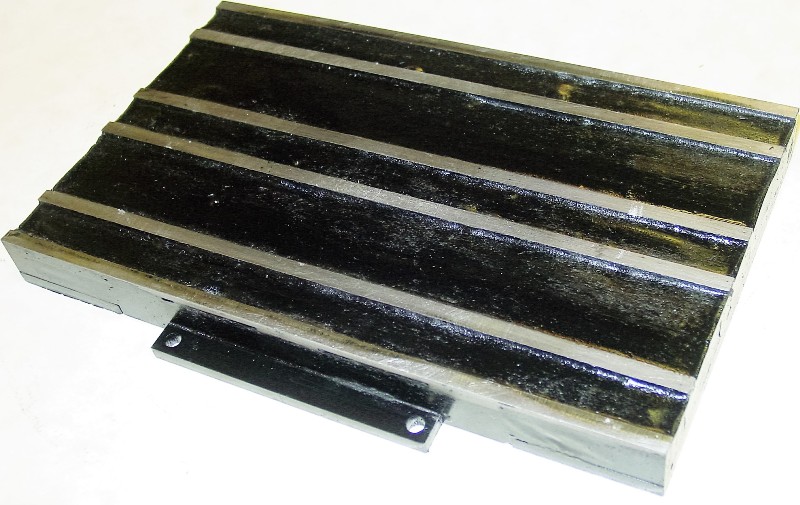

 Low
Profile, Multipoles |
Safety Caution:
The holding values as listed are actual readings of breaking away a 1/2" steel plate with no air-gaps between them. They have not been de-rated. For safety in holding applications, do not use electromagnets at more than 1/2 of rated value. In lifting applications, do not use at more than 1/4 of rated value. Do not use electromagnets over people.
