Magnetech Corp offers True AC electromagnets. They are in stock at negotiable price.



TRUE AC ELECTROMAGNETS

electromagnet

Laminated steel core to eliminate eddy current loss.

Applications: Vibrators (with plate), Rapid on-off holdings, AC magnetic flux generators.





Part Number

Voltage

Current

Magnetic Density

Net Weight

List Price

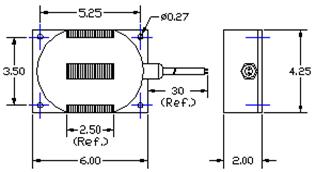

DA-604220-110AC

110 V. AC, 60 Hz @ 50% Duty Cycle

7.5 Amps

1,600 Gauss on center surface

8 lbs.

$393




electromagnet

Laminated steel core to eliminate eddy current loss.

Applications: Vibrators (with plate), Rapid on-off holdings, AC magnetic flux generators.

Part Number

Voltage

Current

Magnetic Density

Net Weight

List Price

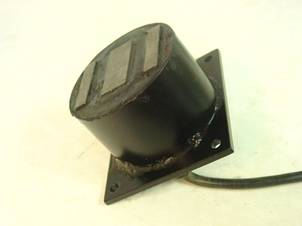

DA-3525-110AC

110 V. AC, 60 Hz @ 50% Duty Cycle

2.2 Amps

900 Gauss on center surface

5 lbs.

$336

electromagnet


Applications:

Adding additional plate for a vibrator. Plate sold separate.

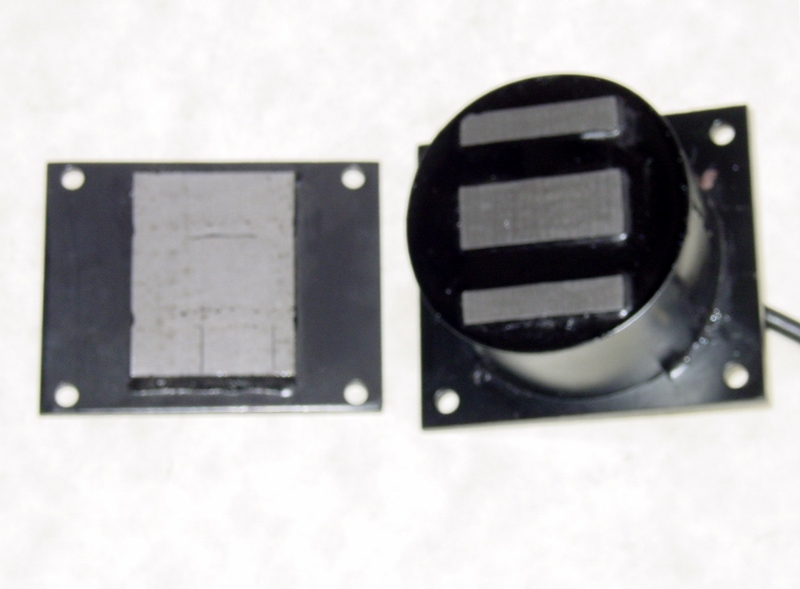

 Vibration Set    Magnetic Oscillator




Safety Caution:

The holding values as listed are actual readings of breaking away a 1/2" steel plate with no air-gaps between them. They have not been de-rated. For safety in holding applications, do not use electromagnets at more than 1/2 of rated value. In lifting applications, do not use at more than 1/4 of rated value. Do not use electromagnets over people.
