 Magnetech Corp offers AC Plug-in electromagnets. They are in stock at negotiable price.



AC PLUG-IN ELECTROMAGNETS

electromagnetBuilt in AC to DC converter.

Just plug into a receptacle.

Suitable for holding applications.

Continuous duty cycle.



110 Volts AC (120 VAC) Plug-In (for US Receptacle) Round Electromagnets:

Part Number

Holding Value

Diameter

Height

Mounting Thread

Thread Depth

Lead Length

Watts

Amps

Net Weight

List Price

110 V. AC

0" Gap

A

B

C

D



PLUG-12C

40 lbs.

1-1/4”

1-1/4”

1/4-20

3/8”

72” cable

2.8

0.03

1 lb.

$208

PLUG-17C

110 lbs.

1-3/4”

1-5/8”

1/4-20

1/2”

72” cable

3.6

0.03

1.3 lbs.

$233

PLUG-2016

180 lbs.

2”

1-5/8”

1/4-20

1/2”

36” cable

5.6

0.05

1.5 lbs.

$245

PLUG-2025

200 lbs.

2”

2-1/2”

1/4-20

3/4”

36” cable

13

0.12

2 lbs.

$256

PLUG-3030

400 lbs.

3”

3”

5/16-18

1”

36” cable

25

0.23

5 lbs.

$315

PLUG-4030

700 lbs.

4”

3”

3/8-16

1”

36” cable

36

0.33

9 lbs.

$390

PLUG-5030

1200 lbs.

5”

3”

1/2-13

1”

36” cable

43

0.39

13 lbs.

$473

 SOLD OUT

PLUG-6030

1700 lbs.

6”

3”

5/8-11

1”

36” cable

46

0.42

20 lbs.

$607

 SOLD OUT



110 Volts AC (120 VAC) Plug-in (for US Receptacle) Rectangular & Square Electromagnets:

Part Number

Holding Value

Width

Length

Height

Hole Spacing

Mounting Thread

Thread Depth

Lead Length

Watts

Amps

Net Weight

List Price

110 V. AC

0" Gap

A

B

C

D

E

F



PLUG-251512

160 lbs.

1-1/2”

2-1/2”

1-1/4”

1”

10-32

3/8”

36” cable

10

0.09

1 lb.

$244

PLUG-25C

280 lbs.

2-1/2”

2-1/2”

1-1/2”

3/4"

1/4-20

1/2”

72” cable

8.2

0.08

2.5 lbs.

$265

PLUG-252515

300 lbs.

2-1/2”

2-1/2”

1-1/2”

N/A

1/4-20

1/2”

36” cable

14

0.13

2.5 lbs.

$265

PLUG-452518

600 lbs.

2-1/2”

4-1/2”

1-7/8”

2”

1/4-20

3/4"

36" cable

29

0.26

5 lbs.

$415

PLUG-353520

700 lbs.

3-1/2”

3-1/2”

2”

N/A

3/8-16

3/4”

36” cable

28

0.25

5 lbs.

$440

PLUG-603020

900 lbs.

3”

6”

2”

3”

3/8-16

1”

36” cable

33

0.3

8 lbs.

$486

PLUG-804025

1700 lbs.

4"

8”

2-1/2”

4”

3/8-16

1”

36” cable

50

0.45

18 lbs.

$607


220 Volts AC (230 VAC) Plug-in Electromagnets:

For 220 V.AC or European voltage plug version, please contact us for custom units.

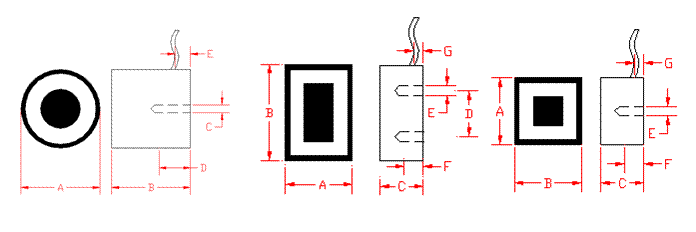

Dimensional Drawings:

Safety Caution:

The holding values as listed are actual readings of breaking away a 1/2" steel plate with no air-gaps between them. They have not been de-rated. For safety in holding applications, do not use electromagnets at more than 1/2 of rated value. In lifting applications, do not use at more than 1/4 of rated value. Do not use electromagnets over people.
